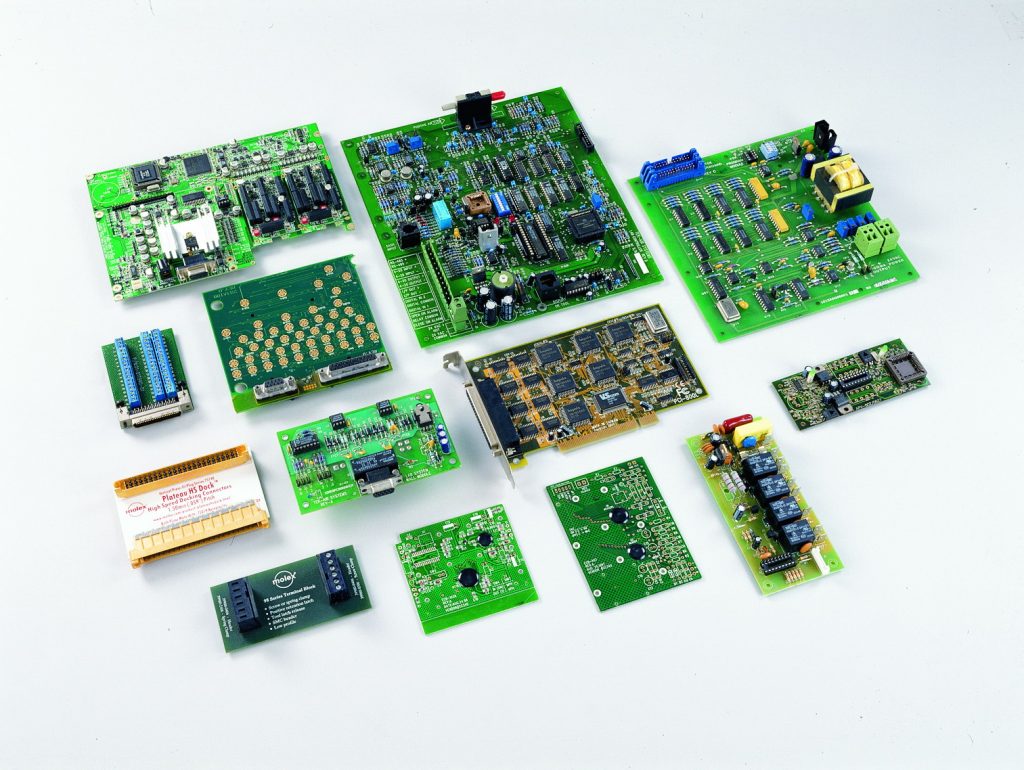

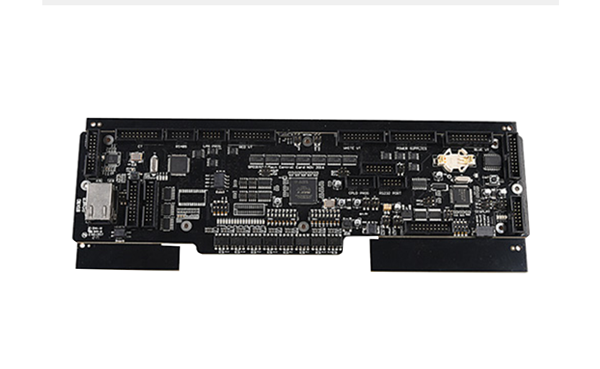

Printed Circuit Board Assembly

Printed Circuit Board Assembly Overview

  • 100% 3D X-ray Inspection after SMT and at Final QA on every leadless part to ensure no shorts, opens, or voids are present
  • Content 100% Inline AOI ensures no errors with parts placement, mis-alignment, mis-orientation, and solder joint defects
  • 12 zone ovens with on-demand Liquid Nitrogen for 99.99% purity on solder joints
  • Dual wave and Selective wave Soldering Machines
  • 100% Inline Solder Paste Inspection
  • First article QA Inspection done on every job
  • Flying Probe Test
  • Parametric Bench Test

Capabilities

  • State-of-the-art 35k sq/ft facility in San Jose
  • 24 Hour builds available
  • Front end engineering services for DFM review
  • 12 Zone Ovens with ON-Demand Liquid Nitrogen for 99.99% purity on solder joints
  • Conformal Coatings for Aerospace, Military, Medical and Industrial Applications

Quality Assurance

    • 100% Inline Solder Paste Inspection
    • First Article QA inspection done on every job
    • Flying Probe Test
    • Parametric Bench Test
    • 100% 3D Xray Inspection after SMT and at Final QA on every leadless part to insure no shorts, opens or voids are present
    • 100% Inline AOI insures no errors with parts placement, mis-alignment, mis-orientation, and solder joint defects
    • Review our industry standard certifications here

Related Products

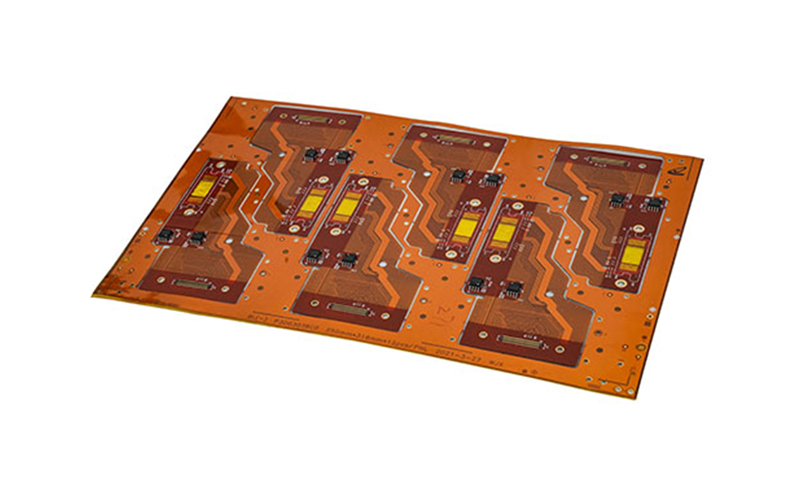

Flex PCB Assembly+PCB Manufacture
