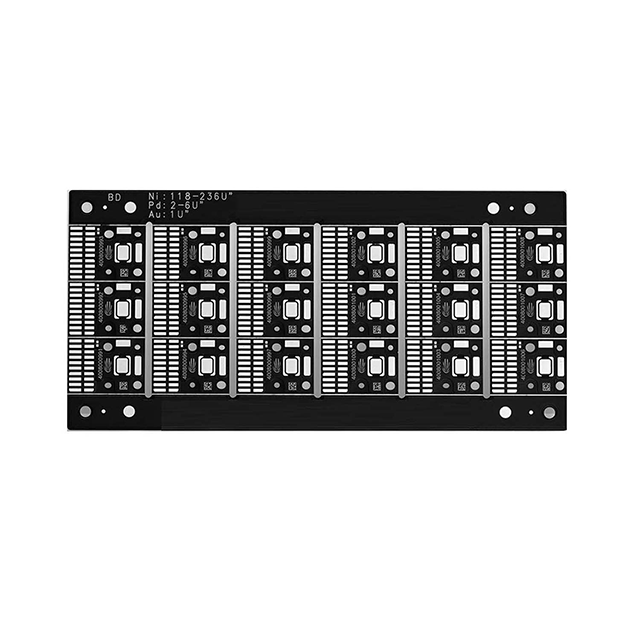

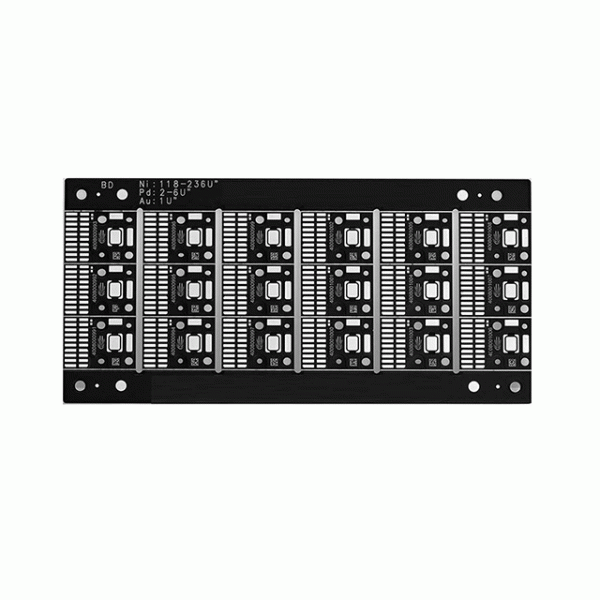

Aluminium core pcb with Immersion Ni/Pa/Au

Metal Base Printed Circuit Board
MPCB, a metal-based PCB, is comprised of a metal substrate (ie Aluminum, Copper or Stainless Steel ect.,), thermal dissipating dielectric and the copper circuit. Due to its superior heat dissipation, MPCBs are used for a wide array of applications. You can find them in power supplies, LED lighting or anywhere that heat is a major factor.

Dihe Capabilities of MPCB:
Max. Layer: 4 layers
Metal Base Material Type: Copper/Aluminum/Stainless Steel/Iron
Surface finish:Immersion Gold(ENIG),HAL,Chem. Tin,Silver,OSP
Max. Board Thickness: 5.0mm
Max. Delivery Panel Size: 1185mm x 480mm
Max. Copper Weight (Inner/Outer Layer): 6oz
Drilling Size on Aluminum Base: Max. 6.4mm, Min. 0.55mm
Drilling Size on Copper Base: Max. 6.0mm, Min. 0.6mm
Max. Breakdown Voltage: 6000V/AC
Heat Dissipation Performance: 6.0W/m.K
