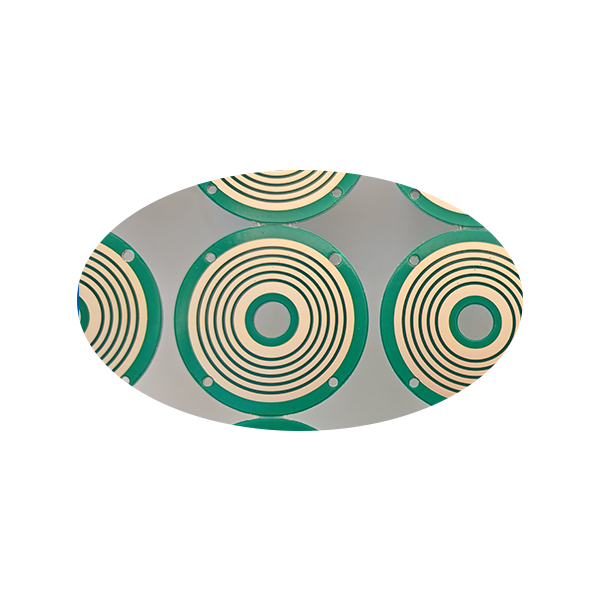

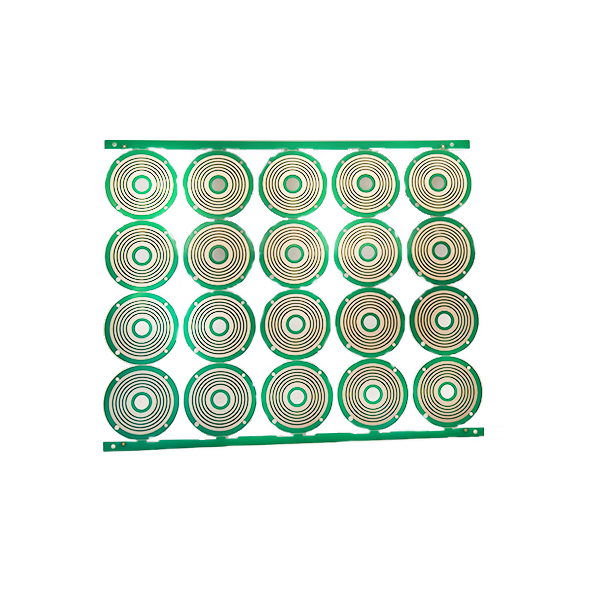

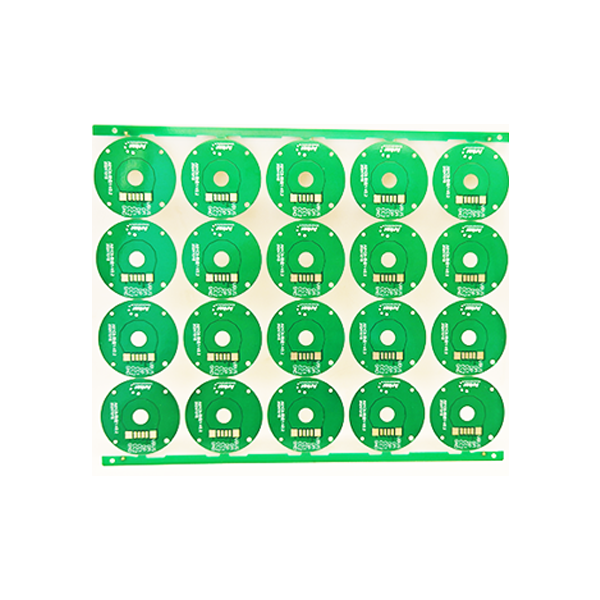

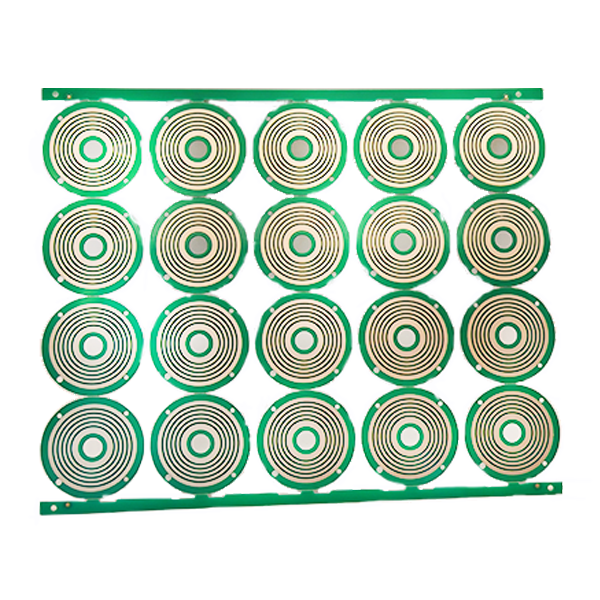

4L pcb with coil copper tracks
Layer:4 Layers
Base material: Standard Htg170
Inner Copper thickness:1oz base
Outer Copper thickness:2oz finish
Thickness:1.6mm thick.,
Surface finish: Immersion Gold
Width/Space of coil:0.3/0.3mm
Order QTY:No MOQ, No MOV
Coil printed circuit boards
Coil pcbs are also known as RF coil or spiral coil boards, refer to a design where a single trace coils around itself in a spiral-like pattern. Coil PCBs are often manufactured with round, square, or meander form of turns, although they can be in a polygon form. With PCB development technology, multiple coils are used in a multilayer PCB and gain great success.
Dihe Capabilities Coil PCB:
Min.Width/Space of coil:0.1/0.1mm
